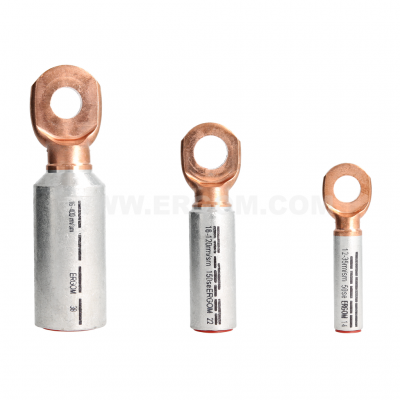

Product name Aluminium-copper longitudinally sealed tubular cable lugs, KMA type

Category Ring

Surface uncoated

Material Al-Cu

Note! - cable lugs are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies; - for cable lugs with a cross-section of 25-300 mm², it is recommended to use KP22-... or AHP-... dies; - for cable lugs with a cross-section of 400 mm², it is recommended to use AH6-38 die

3.1 – Correct direction and order of crimping tubular cable lugs made acc. to DIN
3.2 – First crimping (inside)
3.3 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Koncowki_rurowe_szczelne_aluminiowo-miedziane_typu_KMA_EN.pdf EN 2026-03-20 Download 402.52 KB PDF
Catalog card ERGOM_Koncowki_rurowe_szczelne_aluminiowo-miedziane_typu_KMA_PL.pdf PL 2026-03-20 Download 420.43 KB PDF
