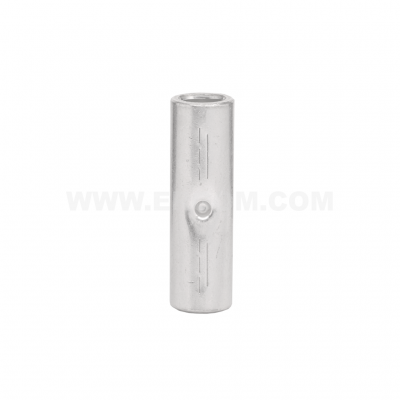

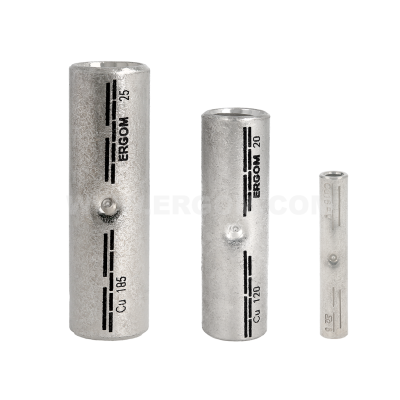

"Butt splice" compression cable connectors, KLD type

"Butt splice" compression cable connectors, KLD type

Product name "Butt splice" compression cable connectors, KLD type

Category Connectors

Surface tin-plated

Material Cu

Note! Sector-shaped conductors (sm) must be rounded with special dies.

4.1 – Correct direction and order of crimping tubular cable connectors made acc. to DIN
4.2 – First crimping (inside)
4.3 – Next crimping (from the inside out)
4.4 – First crimping on the other side (inside)
4.5 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_typu_KLD_EN.pdf EN 2026-03-20 Download 651.41 KB PDF
Catalog card ERGOM_Laczniki_typu_KLD_PL.pdf PL 2026-03-20 Download 647.17 KB PDF
