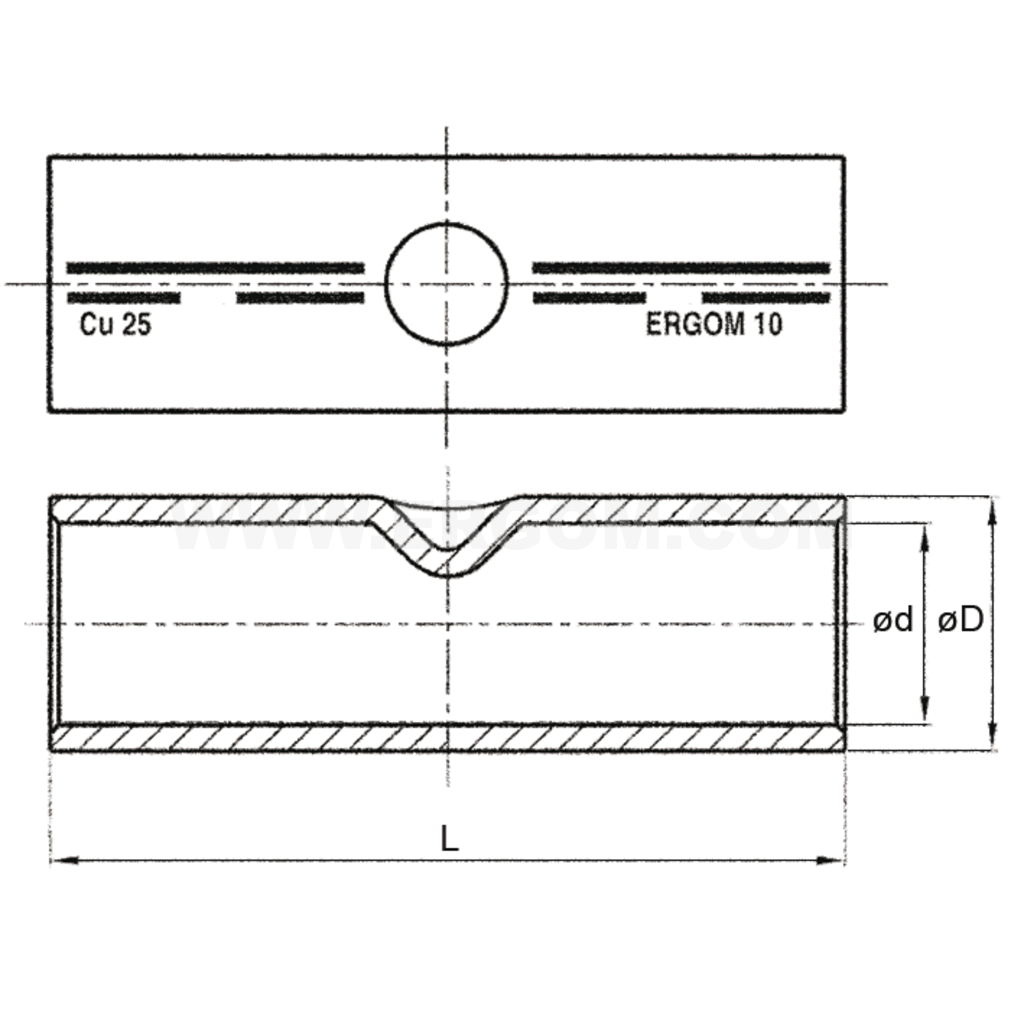

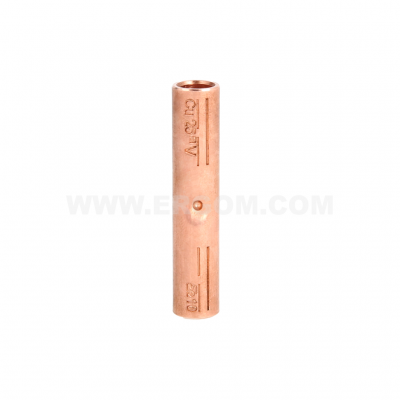

"Butt splice" compression cable connectors, ZMD type

Product name "Butt splice" compression cable connectors, ZMD type

Category Connectors

Surface uncoated

Material Cu

Note! Sector-shaped conductors (sm) must be rounded with special dies.

4.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal. Dimension ‘a’ as per the data sheet
4.1 – Correct direction and order of crimping tubular cable connectors made acc. to DIN
4.2 – First crimping (inside)
4.3 – Next crimping (from the inside out)
4.4 – First crimping on the other side (inside)
4.5 – Next crimping (from the inside out)
