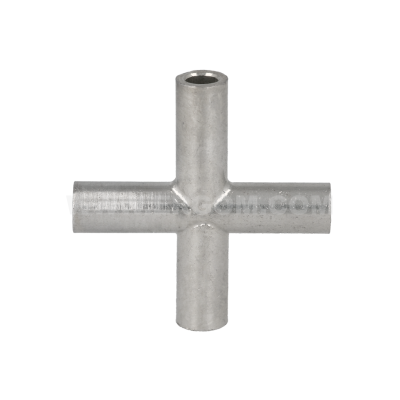

Cable connectors KX type - KX 10

KX 10

E11KM-01080200202

10

1

pcs.

2.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal. Dimension ‘a’ as per the data sheet
2.1 – Correct direction and order of crimping tubular cable connectors
2.2 – First crimping (inside)
2.3 – Next crimping (from the inside out)
2.4 – First crimping on the other side (inside)
2.5 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_typu_KX_EN.pdf EN 2026-10-23 Download 372.32 KB PDF
Catalog card ERGOM_Laczniki_typu_KX_PL.pdf PL 2026-10-23 Download 390.12 KB PDF
