BRC2 1000V Compact Distribution Blocks
The BRC2 distribution blocks make it possible to distribute the energy from a main supply line to several circuits with smaller cross-sections. Both copper and aluminum wires can be connected without the need for additional cable terminals when connecting stranded wires, which speeds up the installation process.
They are widely used in LV switchboards and electrical cabinets within industrial plants, office buildings, shopping centers, public infrastructure, and residential construction.

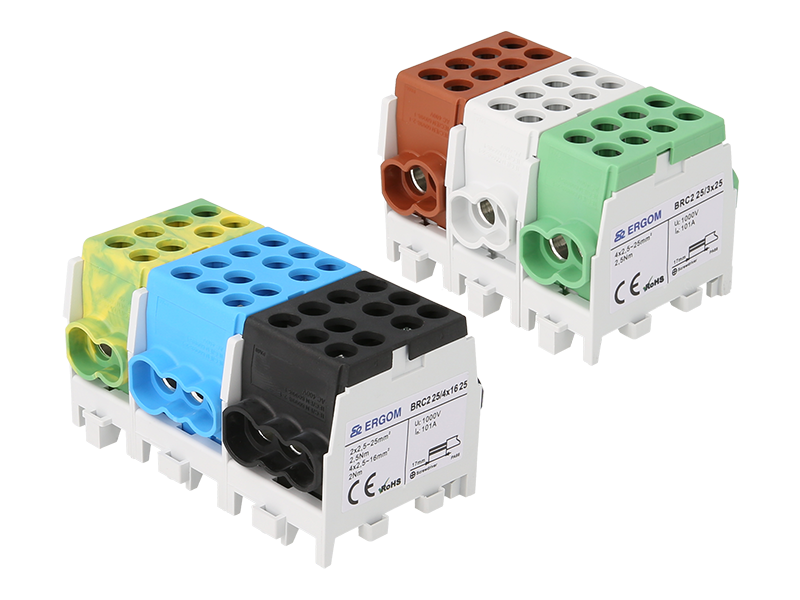

The newly introduced BRC2 blocks are available in 7 different sizes and 6 color variants.
The wide range of sizes allows for the connection of 4 to 8 wires with cross-sections from 2.5mm² to 35mm².

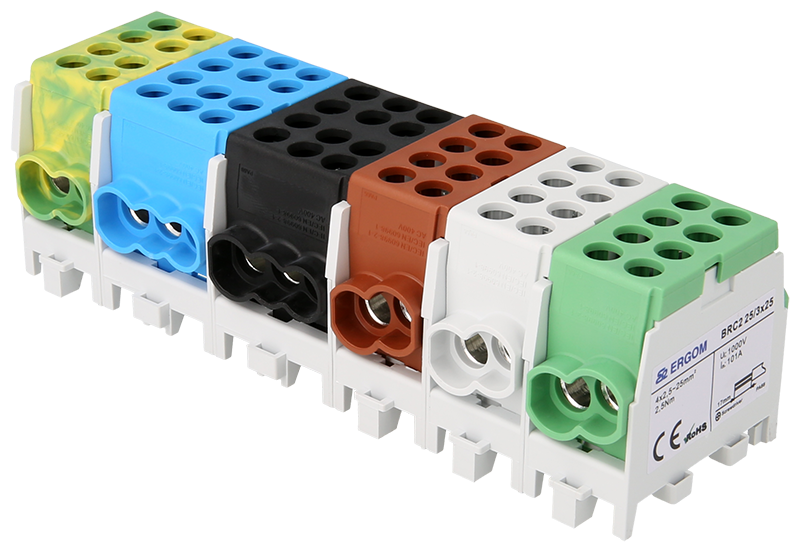

The color variation ensures easy identification of individual blocks and minimizes the risk of errors during connection.
Their compact size allows for easy installation even in limited space, making them ideal for both modernizing existing systems and new installations.
The modular design enables flexible adaptation to individual customer needs. Modules can be easily exchanged and expanded while saving time.
The BRC2 series meets the requirements of the EN 60947-1, EN 60947-7-1, EN 60998-1, EN 60998-2-1 standards. The housing is made of halogen-free material in compliance with the UL 94 V0 flammability class as standard.
