Ex brass glands, EMDW ... HM, EMDW ... H type

Ex brass glands, EMDW ... HM, EMDW ... H type
Ex brass glands, EMDW ... HM, EMDW ... H type

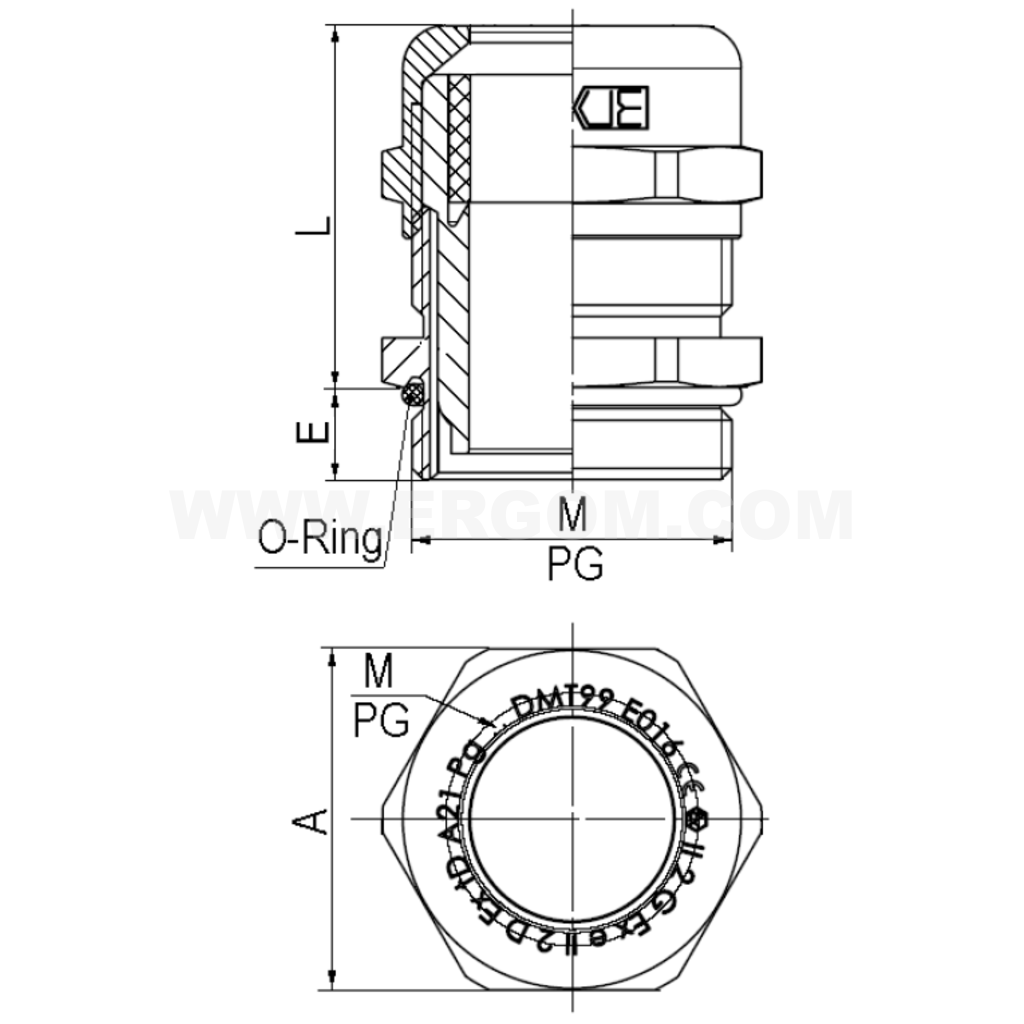

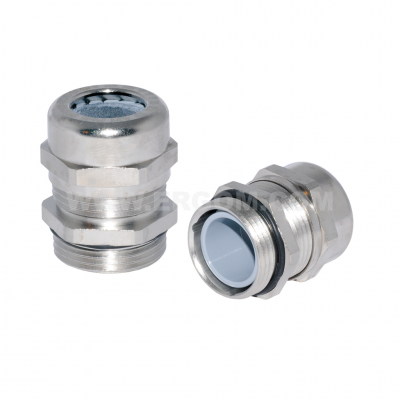

Product name Ex brass glands, EMDW ... HM, EMDW ... H type

Category Cable glands for explosive atmosphere

Operating temperature [°C] -20 ÷ +80

Material brass CuZn39Pb3, nickel-plated; lamellar insert: PA6; V2 UL 94; sealing ring: CR/NBR rubber; o-ring: NBR rubber; dust cap: polyethylene PE-LD

IP degree of protection IP68 – 5 bar

Note! The gland with cap installed does not ensure the described properties.

No data

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Dlawnice_mosiezna_Ex_typu_EMDW_HM_EMDW_H_EN.pdf EN 2026-03-12 Download 225.99 KB PDF
Catalog card ERGOM_Dlawnice_mosiezna_Ex_typu_EMDW_HM_EMDW_H_PL.pdf PL 2026-03-12 Download 272.01 KB PDF
