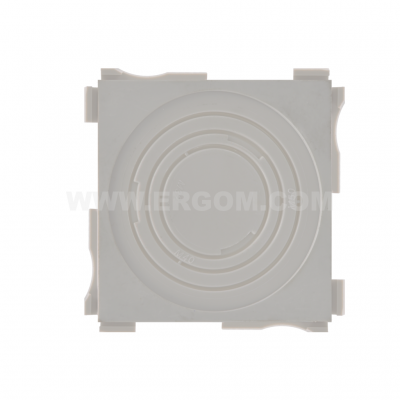

Insert, 68x68 mm, FL 21W12 type

R30RS-04070001201

10

10

pcs.

logistics details
Product title: Insert, 68x68 mm, FL 21W12 type
Type: FL 21W12 (10 PCS)
ERGOM index: R30RS-04070001201
EAN: 5900003582242
Weight netto: ~ 0,065 kg
mechanical details
Material polypropylene reinforced with glass fibre and TPE elastomer, halogen-free
Operating temp. [°C] -20 ÷ +125
Assembly With snap-fasteners for FL 21R frame
Cable diameter [mm] M32, M40, M50
Certificates
IP degree IP65 (with and without cables installed)
Standards EN 60529:1991+A1; EN 60670-1:2005
Characteristics
Note! Po usunięciu z otworu całej membrany elastycznej można w nim zainstalować dławnicę poliamidową (np. DP-EN ..HM) lub gumową (np. PDE), elastyczną, o rozmiarze M32, M40 lub M50.
