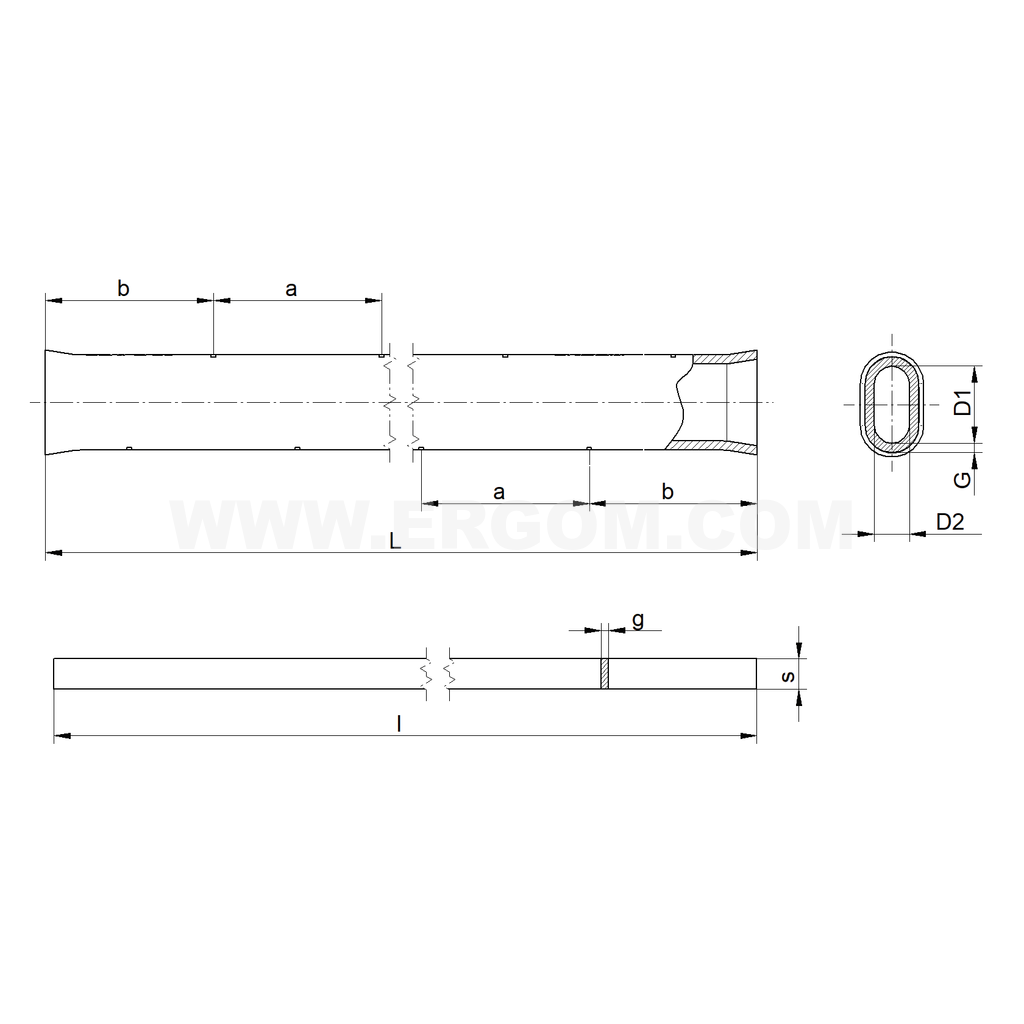

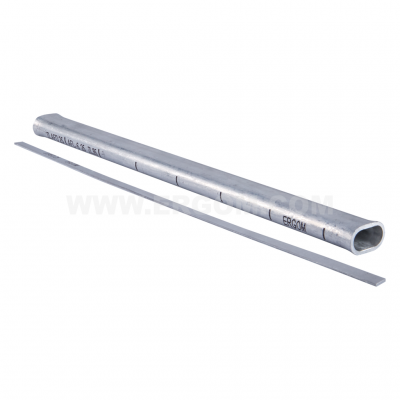

Long mechanically loadable connectors with spacer for AFL overhead power line, ZLAFD type

Product name Long mechanically loadable connectors with spacer for AFL overhead power line, ZLAFD type

Category For crimping

Surface uncoated

Material Al.

Note! INSTALLATION INSTRUCTIONS: The wires are connected using the so-called "overlap" by mechanically pressing the connector. Insert the connected wires into the connector so that they protrude the same length on both sides. Before crimping, insert the aluminum spacer attached to the connector between the wires so that it protrudes the same length on both sides of the connector. Pressing should be done in the places marked on the connector using a die type KP22-ZL... with the socket size and quantity in accordance with the table below. Crimping is performed alternately, starting from the central marking and moving to the outside of the connector.
