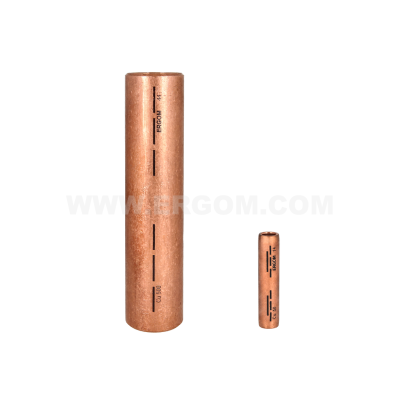

Non-tension compression tubular cable connectors, LMW type

Non-tension compression tubular cable connectors, LMW type
Non-tension compression tubular cable connectors, LMW type

Product name Non-tension compression tubular cable connectors, LMW type

Category Connectors

Surface uncoated

Material Cu

Note! Sector-shaped conductors (sm) must be rounded with special dies.

4.1 – Correct direction and order of crimping tubular cable connectors made acc. to DIN
4.2 – First crimping (inside)
4.3 – Next crimping (from the inside out)
4.4 – First crimping on the other side (inside)
4.5 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_rurowe_nieobciazalne_mechanicznie_typu_LMW_EN.pdf EN 2026-03-20 Download 449.12 KB PDF
Catalog card ERGOM_Laczniki_rurowe_nieobciazalne_mechanicznie_typu_LMW_PL.pdf PL 2026-03-20 Download 470.57 KB PDF
