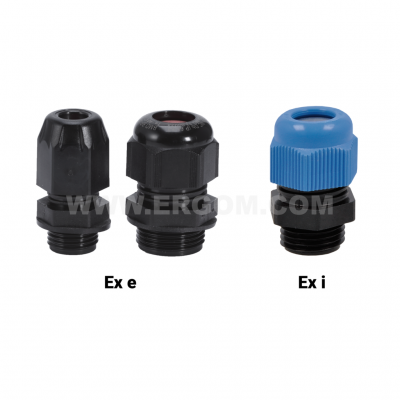

Polyamide glands, EDW...HM type

Product name Polyamide glands, EDW...HM type

Category Cable glands for explosive atmosphere

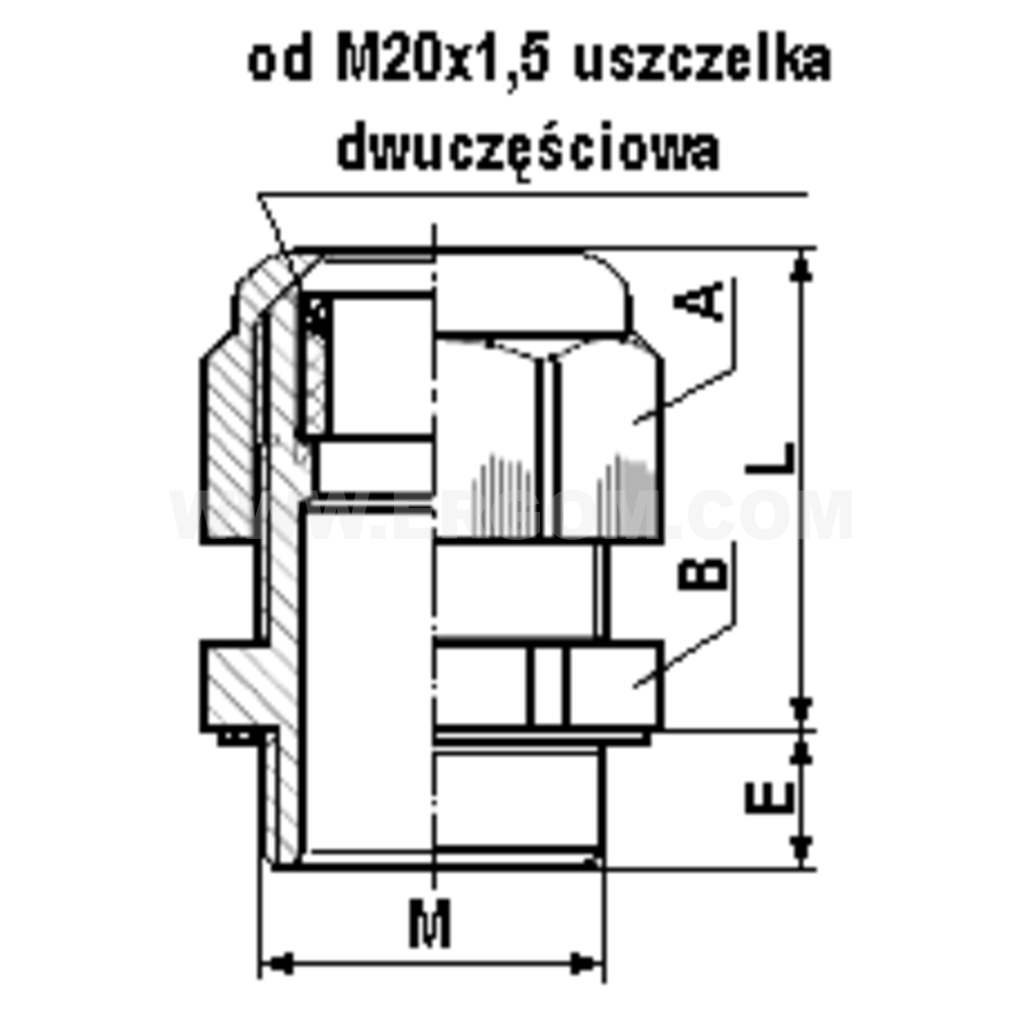

Material PA 6 polyamide; seal: outer part - CR/NBR rubber; inner part - TPE thermoplastic (from M20x1.5); hole plug: PE-LD polyethylene

Operating temperature [°C] -20 ÷ +70 (M12 i M16) -30 ÷ +70 (M20 do M63)

IP degree of protection IP68

Note! The gland with cap installed does not ensure the described properties. EN Nuts have to be ordered separately.
