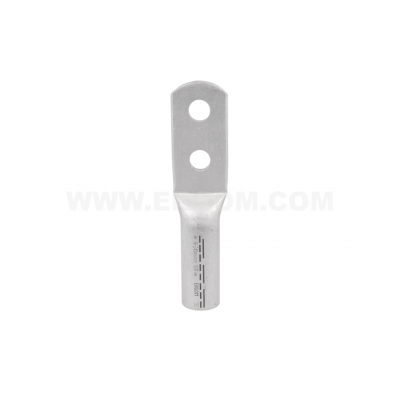

Product name Tubular cable lugs for 2 bolts, KDA...2X type

Category Ring

Surface uncoated

Material Al

Note! - cable lugs are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies. Without contact grease on request.

3.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal . Dimension ‘a’ as per the data sheet
3.1 – Correct direction and order of crimping tubular cable lugs made acc. to DIN
3.2 – First crimping (inside)
3.3 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Koncowki_rurowe_z_dwoma_otworami_pod_sruby_typu_KDA_2X_EN.pdf EN 2026-09-16 Download 385.41 KB PDF
Catalog card ERGOM_Koncowki_rurowe_z_dwoma_otworami_pod_sruby_typu_KDA_2X_PL.pdf PL 2026-09-16 Download 403.15 KB PDF
