Tubular cable lugs for 2 bolts with adjustable spacing, KDR…/2x12 (45-60)

Tubular cable lugs for 2 bolts with adjustable spacing, KDR…/2x12 (45-60)
Tubular cable lugs for 2 bolts with adjustable spacing, KDR…/2x12 (45-60)

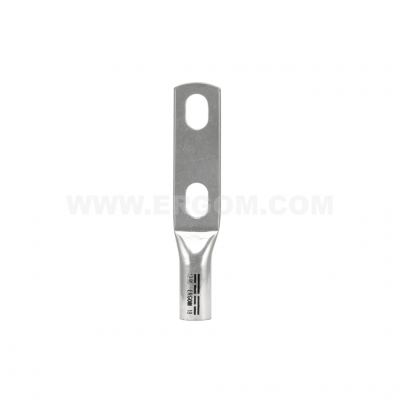

Product name Tubular cable lugs for 2 bolts with adjustable spacing, KDR…/2x12 (45-60)

Category Ring

Surface tin-plated

Material Cu

Note! sector-shaped conductors must be rounded with special dies

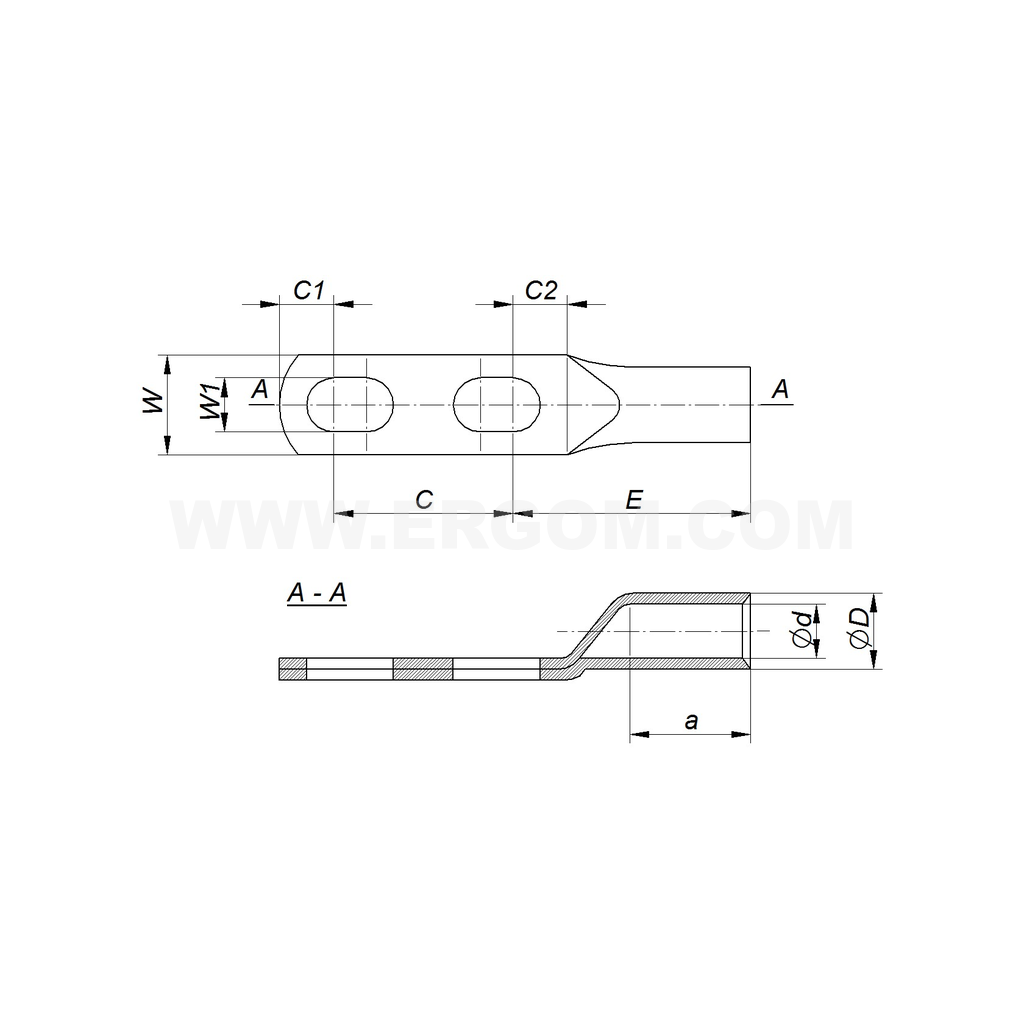

3.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal . Dimension ‘a’ as per the data sheet
3.1 – Correct direction and order of crimping tubular cable lugs made acc. to DIN
3.2 – First crimping (inside)
3.3 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Koncowki_kablowe_rurowe_typu_KDR_2x12_45_60_EN.pdf EN 2026-09-16 Download 295.19 KB PDF
Catalog card ERGOM_Koncowki_kablowe_rurowe_typu_KDR_2x12_45_60_PL.pdf PL 2026-09-16 Download 317.6 KB PDF
