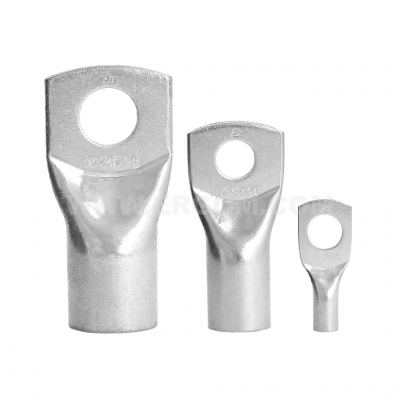

Tubular cable lugs for compacted wires, CKOR type

Tubular cable lugs for compacted wires, CKOR type
Tubular cable lugs for compacted wires, CKOR type

Product name Tubular cable lugs for compacted wires, CKOR type

Category Cu tubular for compressed wire

Surface tin-plated

Material Cu

Note! Sector-shaped conductors (sm) must be rounded with special dies. In the technical documentation of cable and wire manufacturers, the RMC designation is also known as RMV. For crimping CKOR type cable lugs on cables with RMC/RMV conductors, we dedicate KP22-C type dies.

Correct direction and order of crimping tubular cable lugs
First crimping (inside)
Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Koncowki_rurowe_do_kabli_skompresowanych_CKOR_EN.pdf EN 2026-03-12 Download 452.36 KB PDF
Catalog card ERGOM_Koncowki_rurowe_do_kabli_skompresowanych_CKOR_PL.pdf PL 2026-03-12 Download 445.86 KB PDF
