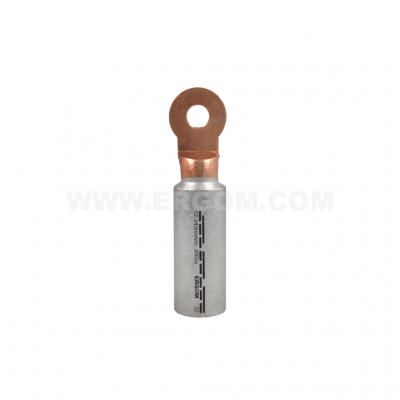

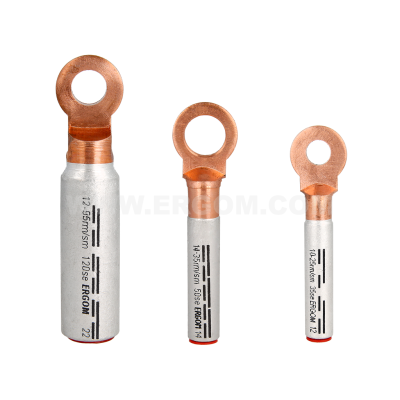

Product name Aluminium-copper longitudinally sealed tubular cable lugs, KCA type

Category Ring

Surface uncoated

Material Al-Cu

Note! - cable lugs are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies.

3.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal . Dimension ‘a’ as per the data sheet
3.1 – Correct direction and order of crimping tubular cable lugs made acc. to DIN
3.2 – First crimping (inside)
3.3 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Koncowki_rurowe_szczelne_aluminiowo-miedziane_typu_KCA_EN.pdf EN 2026-09-16 Download 317.38 KB PDF
Catalog card ERGOM_Koncowki_rurowe_szczelne_aluminiowo-miedziane_typu_KCA_PL.pdf PL 2026-09-16 Download 329.12 KB PDF
