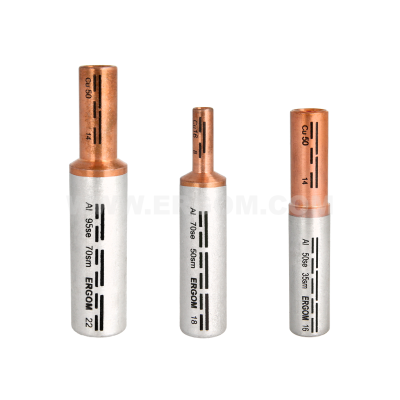

Product name Aluminium-copper tubular cable connectors for sector-shaped conductors, LMANS type

Category Connectors

Surface uncoated

Material Al-Cu

Note! - sector-shaped wires in Cu section must be rounded with special dies; - sector-shaped wires in Al no conductor rounding required; - connectors are filled with special contact grease in AI section; - packed in a separate foil bag.

4.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal. Dimension ‘a’ as per the data sheet
4.1 – Correct direction and order of crimping tubular cable connectors made acc. to DIN
4.2 – First crimping (inside)
4.3 – Next crimping (from the inside out)
4.4 – First crimping on the other side (inside)
4.5 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_aluminiowo-miedziane_do_zyl_sektorowych_typu_LMANS_EN.pdf EN 2026-10-23 Download 429.72 KB PDF
Catalog card ERGOM_Laczniki_aluminiowo-miedziane_do_zyl_sektorowych_typu_LMANS_PL.pdf PL 2026-10-23 Download 454.76 KB PDF
