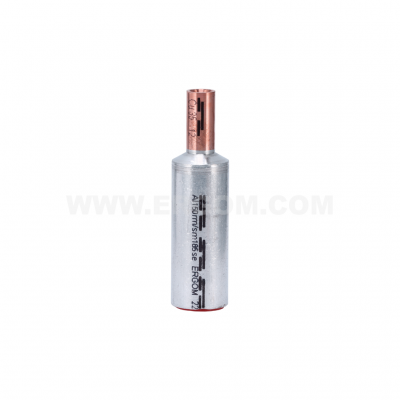

Aluminium-copper tubular cable connectors, LMAN type - LMAN 150/35

E13KC-01030103702

2

1

pcs.

4.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal. Dimension ‘a’ as per the data sheet
4.1 – Correct direction and order of crimping tubular cable connectors made acc. to DIN
4.2 – First crimping (inside)
4.3 – Next crimping (from the inside out)
4.4 – First crimping on the other side (inside)
4.5 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_aluminiowo-miedziane_typu_LMAN_EN.pdf EN 2026-10-23 Download 442.7 KB PDF
Catalog card ERGOM_Laczniki_aluminiowo-miedziane_typu_LMAN_PL.pdf PL 2026-10-23 Download 469.41 KB PDF

No data
