Product name Aluminium-copper tubular cable connectors, LMANW type

Category Connectors

Surface uncoated

Material Al-Cu

Note! - cable lugs are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies.

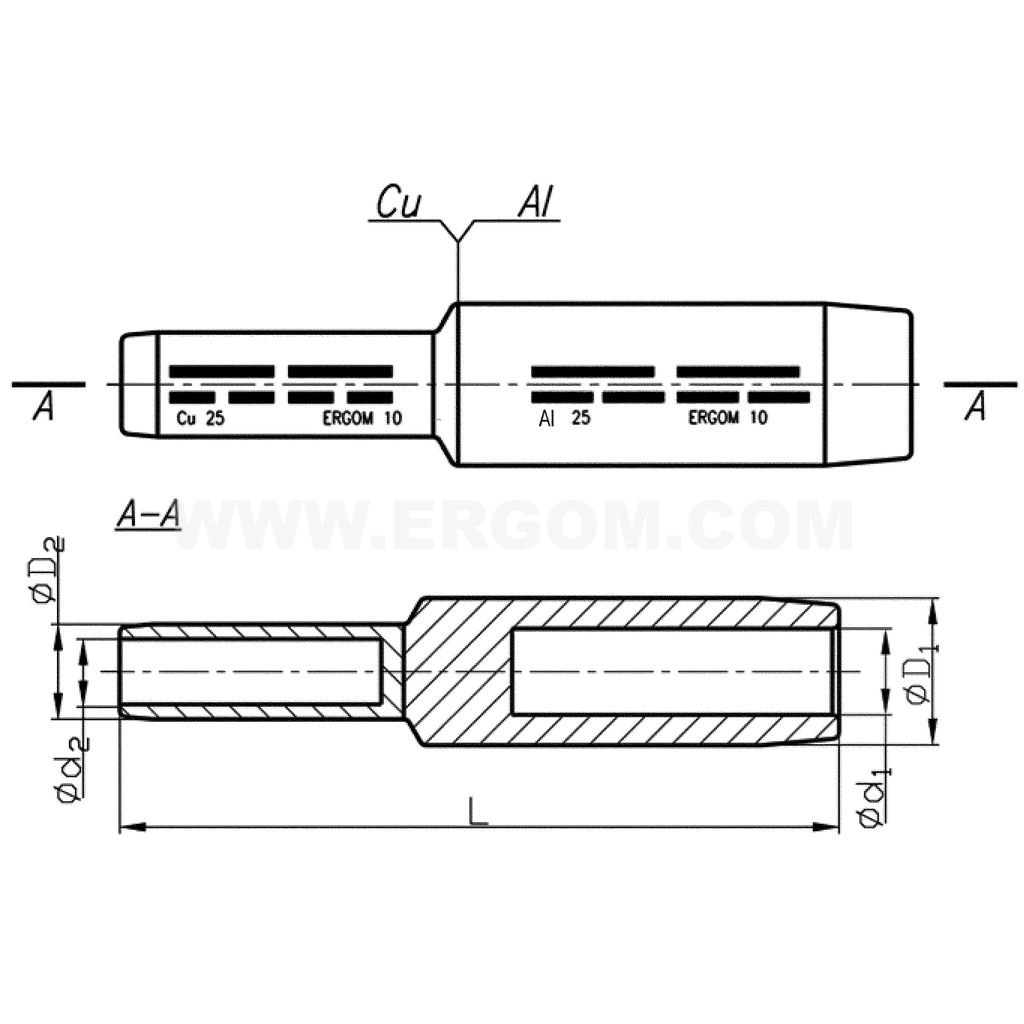

4.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal. Dimension ‘a’ as per the data sheet
4.1 – Correct direction and order of crimping tubular cable connectors made acc. to DIN
4.2 – First crimping (inside)
4.3 – Next crimping (from the inside out)
4.4 – First crimping on the other side (inside)
4.5 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_aluminiowo-_miedziane_typu_LMANW_EN.pdf EN 2026-10-23 Download 497.25 KB PDF
Catalog card ERGOM_Laczniki_aluminiowo-_miedziane_typu_LMANW_PL.pdf PL 2026-10-23 Download 518.08 KB PDF
