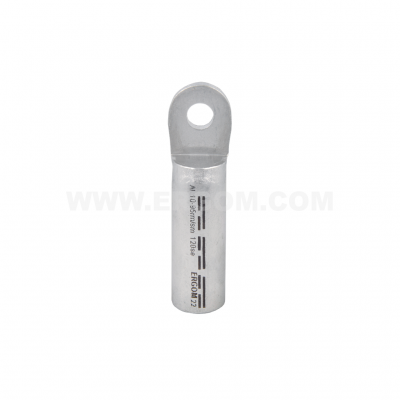

Aluminium longitudinally sealed tubular cable lugs, KRAC type

Aluminium longitudinally sealed tubular cable lugs, KRAC type
Aluminium longitudinally sealed tubular cable lugs, KRAC type

Product name Aluminium longitudinally sealed tubular cable lugs, KRAC type

Category Ring

Surface tin-plated

Material Al

Note! - cable lugs are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies. Without contact grease on request.

3.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal . Dimension ‘a’ as per the data sheet
3.1 – Correct direction and order of crimping tubular cable lugs made acc. to DIN
3.2 – First crimping (inside)
3.3 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Koncowki_aluminiowe_szczelne_typu_KRAC_EN.pdf EN 2026-09-16 Download 508.33 KB PDF
Catalog card ERGOM_Koncowki_aluminiowe_szczelne_typu_KRAC_PL.pdf PL 2026-09-16 Download 525.09 KB PDF
