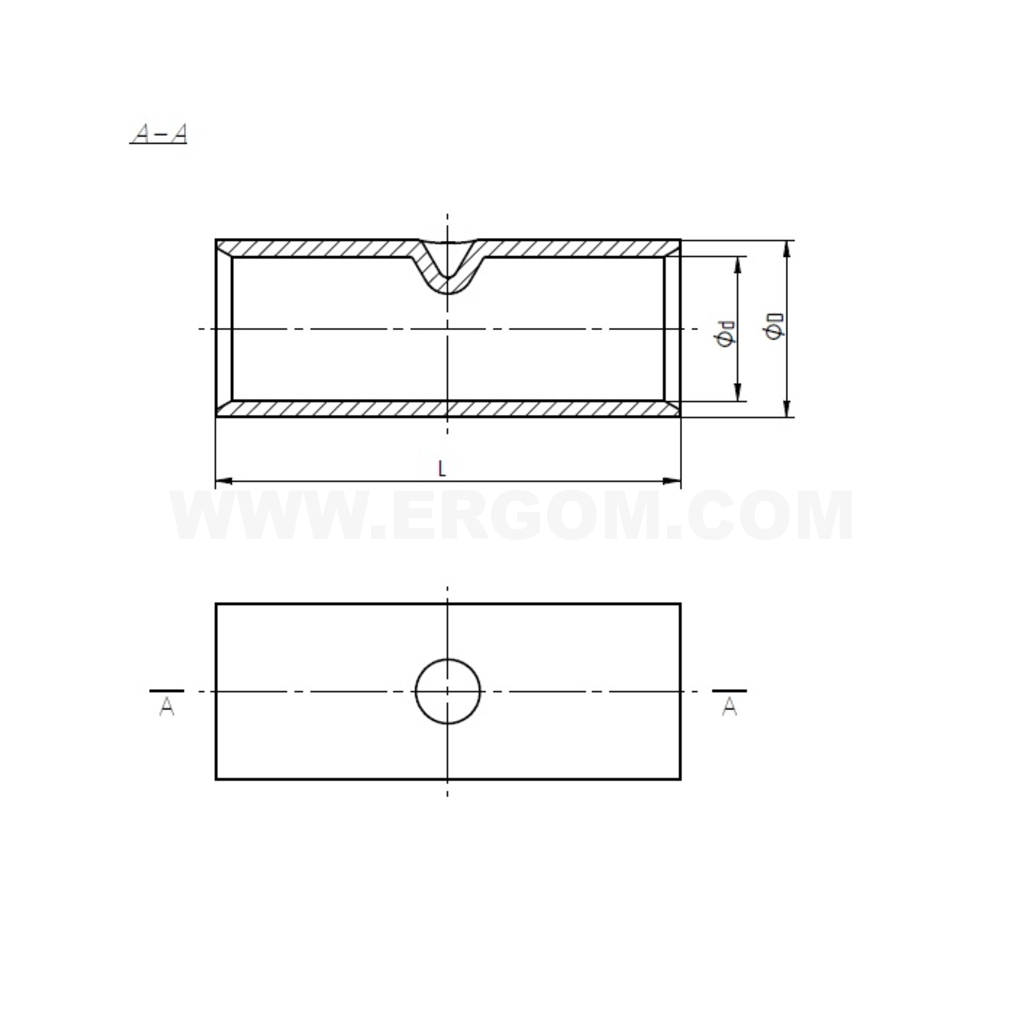

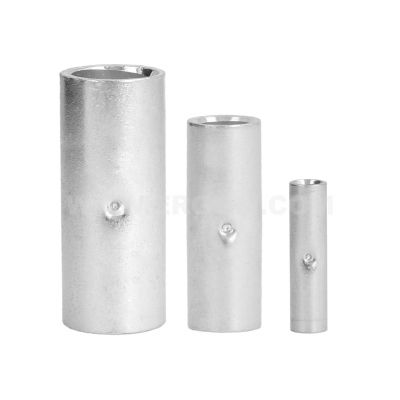

Product name Butt splice cable connectors for compacted wires, CKL type

Category Cu tubular for compressed wire

Material Cu

Surface tin-plated

Note! Sector-shaped conductors (sm) must be rounded with special dies. In the technical documentation of cable and wire manufacturers, the RMC designation is also known as RMV. For crimping CKL type connectors on cables with RMC/RMV conductors, we dedicate KP22-C type dies.

2.1 – Correct direction and order of crimping tubular cable connectors
2.2 – First crimping (inside)
2.3 – Next crimping (from the inside out)
2.4 – First crimping on the other side (inside)
2.5 – Dalsze zaprasowania (od środka na zewnątrz)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_rurowe_do_kabli_skompresowanych_CKL_EN.pdf EN 2026-03-20 Download 467.32 KB PDF
Catalog card ERGOM_Laczniki_rurowe_do_kabli_skompresowanych_CKL_PL.pdf PL 2026-03-20 Download 459.11 KB PDF
