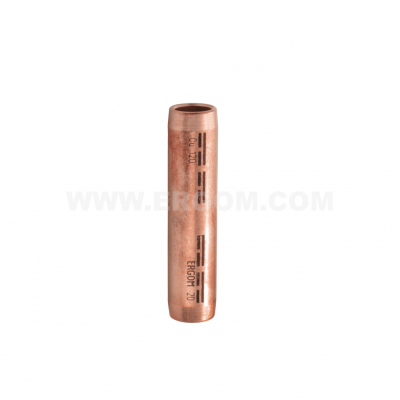

Non-tension compression tubular cable connectors with barrier, LMWP… type

Product name Non-tension compression tubular cable connectors with barrier, LMWP… type

Category Connectors

Surface uncoated

Material Cu

Note! Sector-shaped conductors (sm) must be rounded with special dies.

4.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal. Dimension ‘a’ as per the data sheet
4.1 – Correct direction and order of crimping tubular cable connectors made acc. to DIN
4.2 – First crimping (inside)
4.3 – Next crimping (from the inside out)
4.4 – First crimping on the other side (inside)
4.5 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_miedziane_z_przegroda_nieobciazalne_mechanicznie_LMWP_EN.pdf EN 2026-10-23 Download 475.92 KB PDF
Catalog card ERGOM_Laczniki_miedziane_z_przegroda_nieobciazalne_mechanicznie_LMWP_PL.pdf PL 2026-10-23 Download 495.83 KB PDF
