Modular enclosures, RLP..R and RLN..R type
Flush-mount meter and modular enclosures, RLP..R type
Technical data:
Material: steel plate, thickness 1 mm.
Coverage: Polyester powder paint, colour RAL 9016.
Composition of kit:
- Plastic meter-mounting plate;
- TSE rails, number of rails in a set according to the table;
- Brass protecting and neutral clamps;
- Insulators to neutral terminal strip;
- Grounding wire terminated with connector tips;
-Set of assembly standard elements.
Application: For installation counters and modular apparatus, to keep everyone away from touch. For indoor applications.
Working conditions: According to standard PN-EN 62208, PN-EN 61439-1,
IP level: IP30, according to IEC 60529 standard
Installation: Built into wall niche
Electrical parameters: Un = 230/400V; Ui = 500V; In = 80A; Uimp = 5kV. Only RLP ... R
Type |
Item No. |
No. of DIN rails |
No. of modules |
Meter-mounting |
Dimension [mm] |
||||
C |
S |
S1 |
W |
W1 |
|||||
RLP 1F R |
R30RS-08010100100 |
0 |
0 |
1 |
165 |
194 |
161 |
315 |
281 |
RLP-1F-4 R |
R30RS-08010102200 |
1 |
4 |
1 |
165 |
194 |
161 |
415 |
381 |
RLP-1F-6 R |
R30RS-08010102300 |
1 |
6 |
1 |
165 |
258 |
224 |
415 |
381 |
RLP-2x1F R |
R30RS-08010100400 |
0 |
0 |
2 |
165 |
353 |
319 |
315 |
281 |
RLP-2x1F-10 R |
R30RS-08010102500 |
1 |
10 |
2 |
165 |
353 |
319 |
415 |
381 |
RLP-3F R |
R30RS-08010100600 |
0 |
0 |
1 |
185 |
290 |
256 |
410 |
376 |
RLP-3F-8 R |
R30RS-08010102700 |
1 |
8 |
1 |
185 |
290 |
256 |
510 |
476 |
RLP-3F-21 R |
R30RS-08010102800 |
3 |
21 |
1 |
185 |
360 |
326 |
510 |
476 |
RLP-3F-34 R |
R30RS-08010102900 |
3 |
34 |
1 |
185 |
450 |
416 |
510 |
476 |
RLP-2x3F R |
R30RS-08010101000 |
0 |
0 |
2 |
185 |
458 |
424 |
410 |
376 |
RLP-2x3F-16 R |
R30RS-08010103100 |
1 |
16 |
2 |
185 |
458 |
424 |
510 |
476 |
RLP-1F3F-16 R |
R30RS-08010103200 |
2 |
16 |
2 |
185 |
450 |
416 |
510 |
476 |
RLP-1F3F-23 R |
R30RS-08010103300 |
2 |
23 |
2 |
185 |
450 |
416 |
510 |
476 |

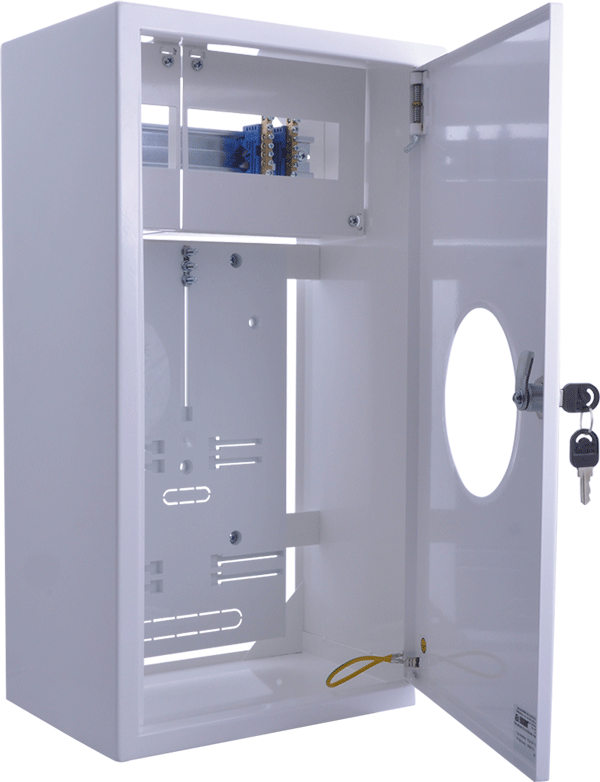

Surface-mount meter and modular enclosures, RLN..R type
Technical data:
Material: steel plate, thickness 1 mm.
Coverage: Polyester powder paint, colour RAL 9016.
Composition of kit:
- Plastic meter-mounting plate;
- TSE rails, number of rails in a set according to the table;
- Brass protecting and neutral clamps;
- Insulators to neutral terminal strip;
- Grounding wire terminated with connector tips;
- Set of assembly standard elements.
Application: For installation counters and modular apparatus, to keep everyone away from touch. For indoor applications.
Working conditions: According to standard PN-EN 62208, PN-EN 61439-1,
IP level: IP30, according to IEC 60529 standard
Installation: Racked on the wall, with four pins, through holes Ø10.2 in back wall
Electrical parameters: Un = 230/400V; Ui = 500V; In = 80A; Uimp = 5kV. Only RLN ... R
Type |
Item No. |
No. of DIN rails |
No. of modules |
Meter-mounting |

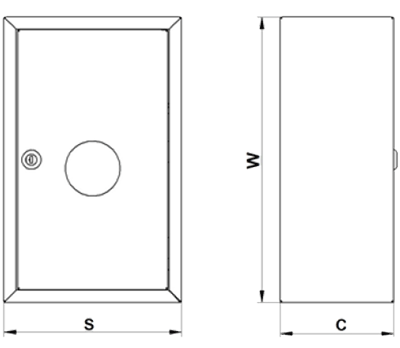

Dimension [mm] |
||
C |
S |
W |
|||||
RLN 1F R |
R30RS-08020100100 |
0 |
0 |
1 |
165 |
194 |
315 |
RLN-1F-4 R |
R30RS-08020102200 |
1 |
4 |
1 |
165 |
194 |
415 |
RLN-1F-6 R |
R30RS-08020102300 |
1 |
6 |
1 |
165 |
258 |
415 |
RLN-2x1F R |
R30RS-08020100400 |
0 |
0 |
2 |
165 |
353 |
315 |
RLN-2x1F-10 R |
R30RS-08020102500 |
1 |
10 |
2 |
165 |
353 |
415 |
RLN-3F R |
R30RS-08020100600 |
0 |
0 |
1 |
185 |
290 |
410 |
RLN-3F-8 R |
R30RS-08020102700 |
1 |
8 |
1 |
185 |
290 |
510 |
RLN-3F-21 R |
R30RS-08020102800 |
3 |
21 |
1 |
185 |
360 |
510 |
RLN-3F-34 R |
R30RS-08020102900 |
3 |
34 |
1 |
185 |
450 |
510 |
RLN-2x3F R |
R30RS-08020101000 |
0 |
0 |
2 |
185 |
458 |
410 |
RLN-2x3F-16 R |
R30RS-08020103100 |
1 |
16 |
2 |
185 |
458 |
510 |
RLN-1F3F-16 R |
R30RS-08020103200 |
2 |
16 |
2 |
185 |
450 |
510 |
RLN-1F3F-23 R |
R30RS-08020103300 |
2 |
23 |
2 |
185 |
450 |
510 |
