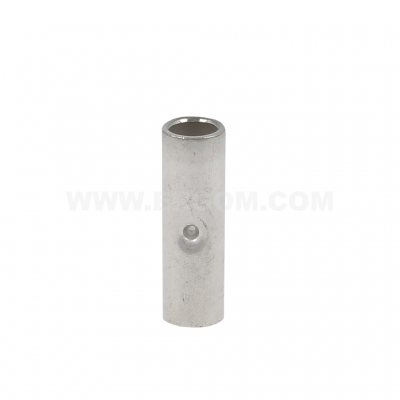

Low-cost "butt splice" cable connectors, LE type

Low-cost
Low-cost "butt splice" cable connectors, LE type

Product name Low-cost "butt splice" cable connectors, LE type

Category Cu low-cost tubular

Surface tin-plated

Material Cu

Note! Sector-shaped conductors (sm) must be rounded with special dies.

2.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal. Dimension ‘a’ as per the data sheet
2.1 – Correct direction and order of crimping tubular cable connectors
2.2 – First crimping (inside)
2.3 – Next crimping (from the inside out)
2.4 – First crimping on the other side (inside)
2.5 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_ekonomiczne_typu_LE_do_laczenia_na_styk_EN.pdf EN 2026-10-23 Download 374.71 KB PDF
Catalog card ERGOM_Laczniki_ekonomiczne_typu_LE_do_laczenia_na_styk_PL.pdf PL 2026-10-23 Download 401.56 KB PDF
