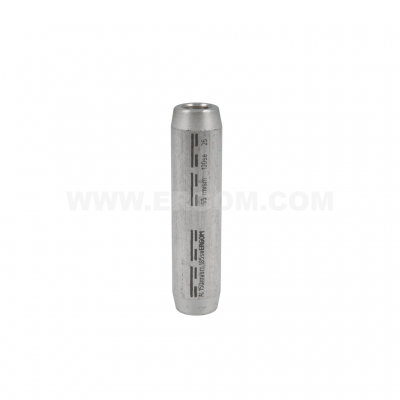

Product name Non-tension compression reducing tubular cable connectors , LAW…/… type

Category Connectors

Surface uncoated

Material Al

Note! - connectors are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies; - larger recommended number of crimps always refers to a larger inner diameter of the connector. Tin-plated version on request.

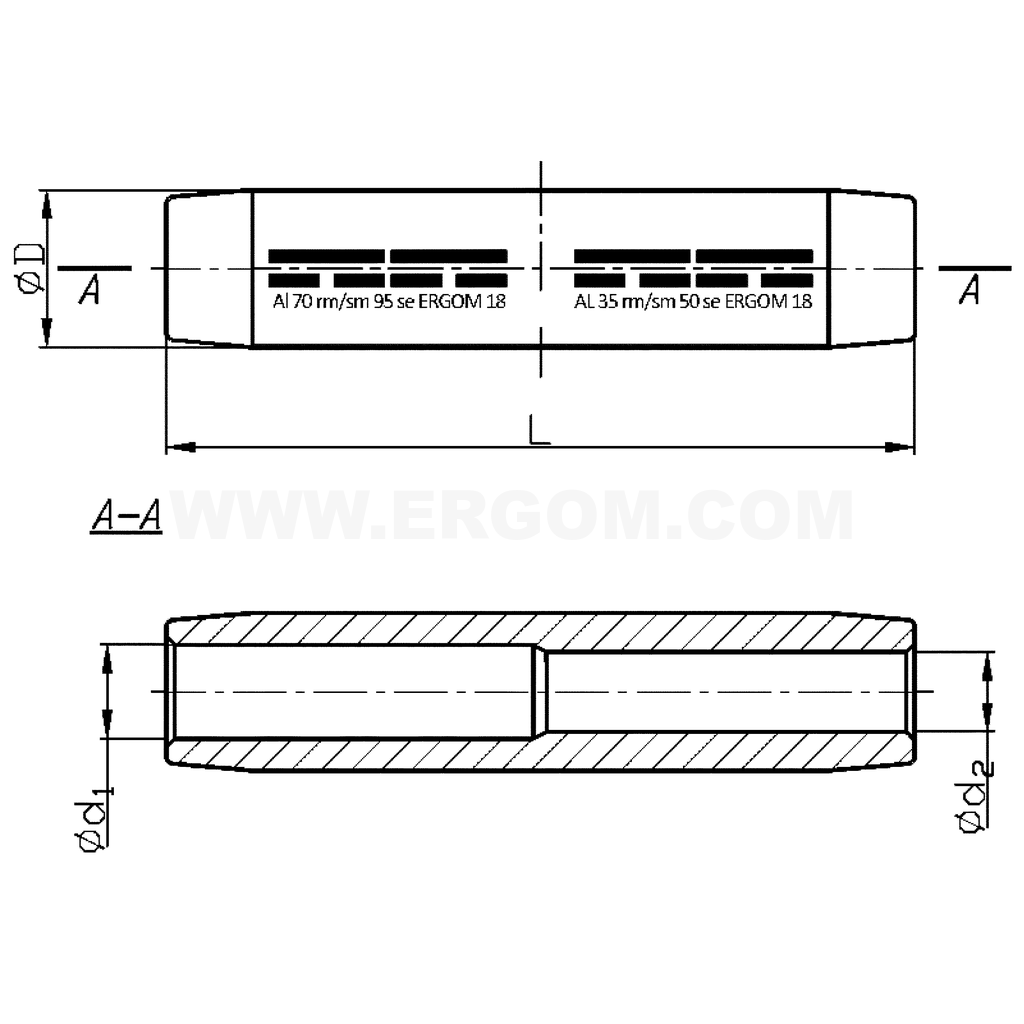

4.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal. Dimension ‘a’ as per the data sheet
4.1 – Correct direction and order of crimping tubular cable connectors made acc. to DIN
4.2 – First crimping (inside)
4.3 – Next crimping (from the inside out)
4.4 – First crimping on the other side (inside)
4.5 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_rurowe_redukcyjne_typu_LAW_EN.pdf EN 2026-10-23 Download 383.73 KB PDF
Catalog card ERGOM_Laczniki_rurowe_redukcyjne_typu_LAW_PL.pdf PL 2026-10-23 Download 403.67 KB PDF
