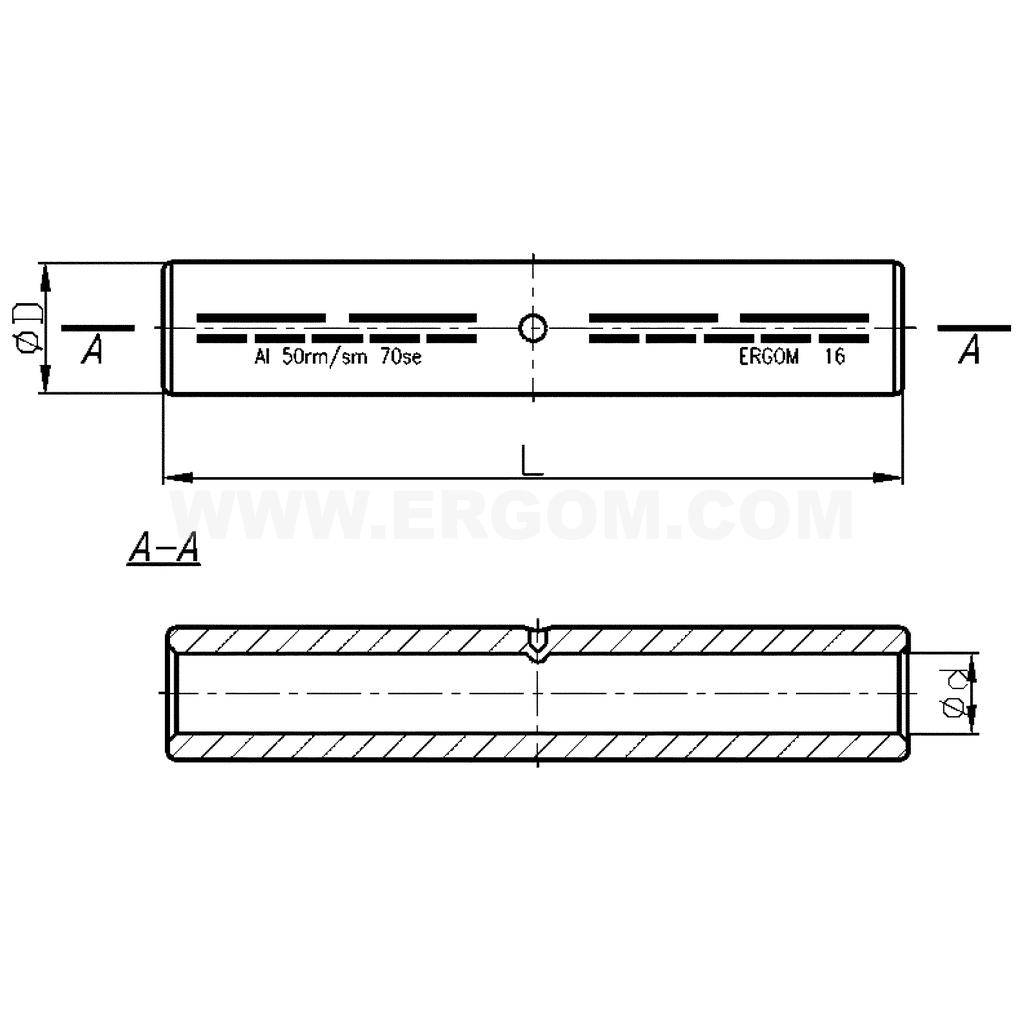

Product name Non-tension compression tubular cable connectors, LA... type

Category Connectors

Surface uncoated

Material Al

Note! - LA connectors are filled with special contact grease in tubular part ended with a plastic plug; - sector-shaped conductors must be rounded with special dies. LA...BS - without contact grease. LAC - tin-plated on request.

4.1 – Correct direction and order of crimping tubular cable connectors made acc. to DIN
4.2 – First crimping (inside)
4.3 – Next crimping (from the inside out)
4.4 – First crimping on the other side (inside)
4.5 – Next crimping (from the inside out)
Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_rurowe_nieobciazalne_mechanicznie_typu_LA_EN.pdf EN 2026-03-20 Download 496.54 KB PDF
Catalog card ERGOM_Laczniki_rurowe_nieobciazalne_mechanicznie_typu_LA_PL.pdf PL 2026-03-20 Download 513.67 KB PDF
