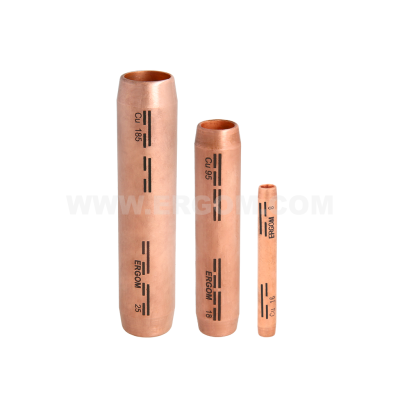

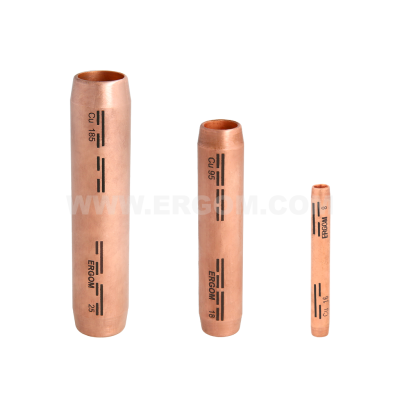

Non-tension compression tubular cable connectors with barrier, LMWP… type

Product name Non-tension compression tubular cable connectors with barrier, LMWP… type

Category Connectors

Surface uncoated

Material Cu

Note! Sector-shaped conductors (sm) must be rounded with special dies.

4.1 – Correct direction and order of crimping tubular cable connectors made acc. to DIN

4.2 – First crimping (inside)

4.3 – Next crimping (from the inside out)

4.4 – First crimping on the other side (inside)

4.5 – Next crimping (from the inside out)

No data

Type	Name		Language	Updated at	Download	File type
Catalog card	ERGOM_Laczniki_miedziane_z_przegroda_nieobciazalne_mechanicznie_LMWP_EN.pdf		EN	2026-03-20	444.01 KB	PDF
Catalog card	ERGOM_Laczniki_miedziane_z_przegroda_nieobciazalne_mechanicznie_LMWP_PL.pdf		PL	2026-03-20	466.31 KB	PDF
