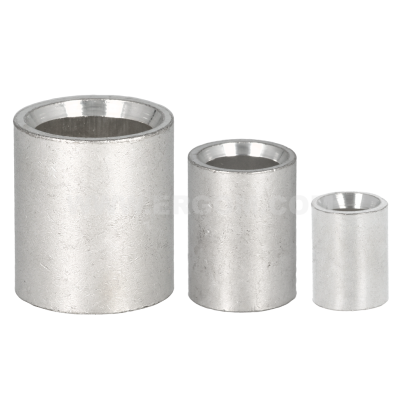

Product name Parallel compression cable connectors, KLS type

Category Connectors

Surface tin-plated

Material Cu

Note! Sector-shaped conductors (sm) must be rounded with special dies.

2.1 – Correct direction and order of crimping tubular cable connectors
2.2 – First crimping (inside)
2.3 – Next crimping (from the inside out)
2.4 – First crimping on the other side (inside)
2.5 – Dalsze zaprasowania (od środka na zewnątrz)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Laczniki_typu_KLS_laczace_na_zakladke_EN.pdf EN 2026-03-20 Download 367.44 KB PDF
Catalog card ERGOM_Laczniki_typu_KLS_laczace_na_zakladke_PL.pdf PL 2026-03-20 Download 386.12 KB PDF
