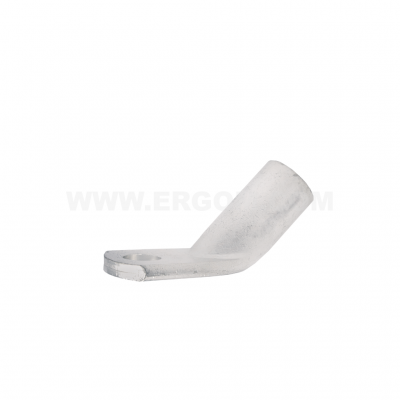

Tubular angle cable lugs, K45D type

Tubular angle cable lugs, K45D type
Tubular angle cable lugs, K45D type

Product name Tubular angle cable lugs, K45D type

Category Angular

Surface tin-plated

Material Cu

Note! Sector-shaped conductors (sm) must be rounded with special dies.

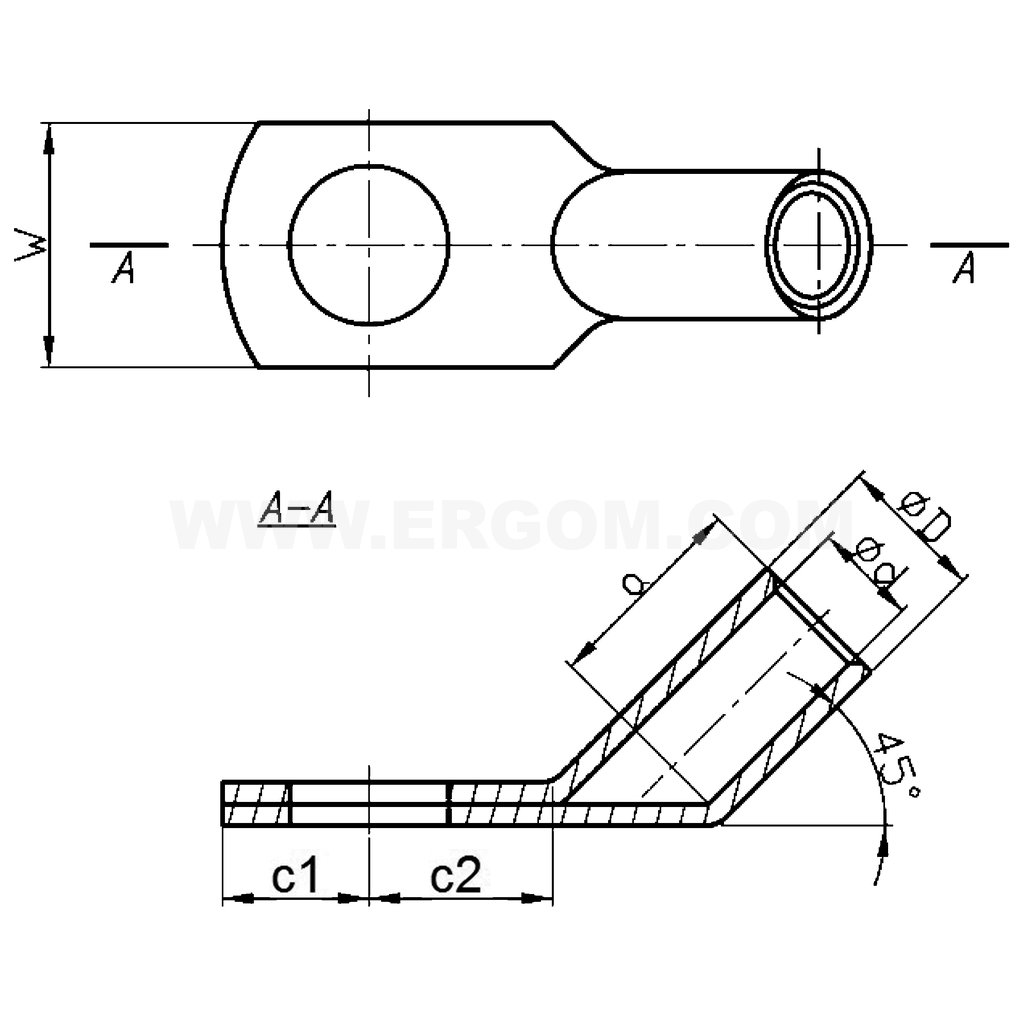

3.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal . Dimension ‘a’ as per the data sheet
3.1 – Correct direction and order of crimping tubular cable lugs made acc. to DIN
3.2 – First crimping (inside)
3.3 – Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Koncowki_katowe_rurowe_typu_K45D_EN.pdf EN 2026-09-16 Download 576.76 KB PDF
Catalog card ERGOM_Koncowki_katowe_rurowe_typu_K45D_PL.pdf PL 2026-09-16 Download 580.07 KB PDF
