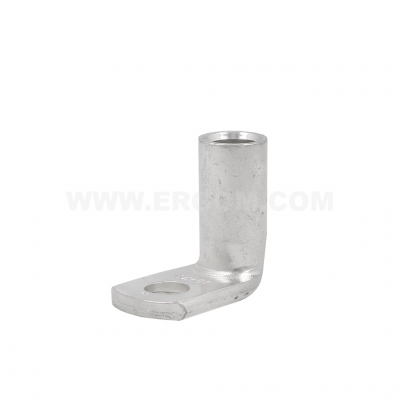

Tubular angle cable lugs, K90R type

Tubular angle cable lugs, K90R type
Tubular angle cable lugs, K90R type

Product name Tubular angle cable lugs, K90R type

Category Angular

Material Cu

Surface tin-plated

Note! Sector-shaped conductors (sm) must be rounded with special dies. Other designs on request. For crimping cable lugs on cables of 5 class conductors (from cross-section of 10 mm²), we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

1.1 - Correct direction and order of crimping tubular cable lugs
1.2 - First crimping (inside)
1.3 - Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Koncowki_katowe_rurowe_typu_K90R_EN.pdf EN 2026-03-20 Download 573.28 KB PDF
Catalog card ERGOM_Koncowki_katowe_rurowe_typu_K90R_PL.pdf PL 2026-03-20 Download 576.04 KB PDF
