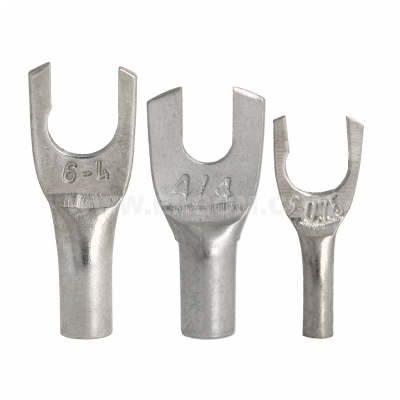

Tubular spade cable lugs, KWR type

Product name Tubular spade cable lugs, KWR type

Category Fork

Surface tin-plated

Material Cu

Note! Sector-shaped conductors (sm) must be rounded with special dies. For crimping cable lugs on cables of 5 class conductors (from cross-section of 10 mm²), we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

1.0 – Strip the insulation from the cable conductor and clean the conductor before fitting the terminal . Dimension ‘a’ as per the data sheet
1.1 - Correct direction and order of crimping tubular cable lugs
1.2 - First crimping (inside)
1.3 - Next crimping (from the inside out)

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Koncowki_widelkowe_rurowe_typu_KWR_EN.pdf EN 2026-10-14 Download 345.95 KB PDF
Catalog card ERGOM_Koncowki_widelkowe_rurowe_typu_KWR_PL.pdf PL 2026-10-14 Download 372.23 KB PDF
