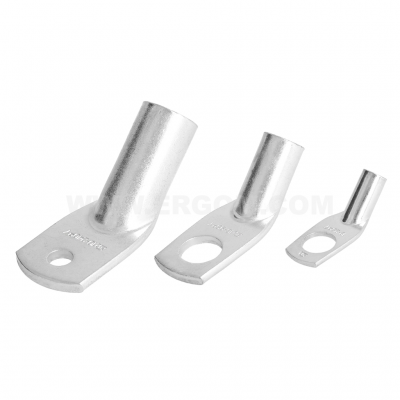

Tubular angle cable lugs, K45R type

Tubular angle cable lugs, K45R type

Product name Tubular angle cable lugs, K45R type

Category Angular

Surface tin-plated

Material Cu

Note! Sector-shaped conductors (sm) must be rounded with special dies. On special request, elbows can be bent at 30° (K30R) or 60° (K60R) or at any other angle. For crimping cable lugs on cables of 5 class conductors (from cross-section of 10 mm²), we recommend crimping in a "hexagon with fangs" using KP22-FL type dies.

No data

No data

Type Name Language Updated at Download File type
Catalog card ERGOM_Koncowki_katowe_rurowe_typu_K45R_EN.pdf EN 2026-03-12 Download 568.49 KB PDF
Catalog card ERGOM_Koncowki_katowe_rurowe_typu_K45R_PL.pdf PL 2026-03-12 Download 566.59 KB PDF

No data
